A stream mix console for Linux, not a patchbay.
Mix game, voice chat, mic, music, alerts and desktop audio in one window. Choose what reaches headphones, the live stream and the Twitch VOD. Record individual buses on separate OBS tracks when you need their audio on its own.
Free and open source (Apache-2.0). 0.2.0 is available for x86_64. Validated on Ubuntu 26.04; glibc 2.43+ required. Requirements and launch.
Control your mixes
Adjust buses with faders, meters, mute and solo. Save a mix as a scene and switch scenes while you stream. Rostrum manages the PipeWire routing behind those controls.
Rostrum uses PipeWire and WirePlumber. Its AppImage was validated on Ubuntu 26.04 x86_64, not every Linux desktop. The virtual devices live in PipeWire, not in the app; applications can fall back to the system output when Rostrum quits or crashes.
A bus for each source
Each source gets a named bus with a fader and a meter. No ports to connect by hand.
Headphones, live stream and VOD
Set headphone and stream destinations per bus, then choose which buses stay in the Twitch VOD.
Features
Included in Rostrum 0.2.0.
-

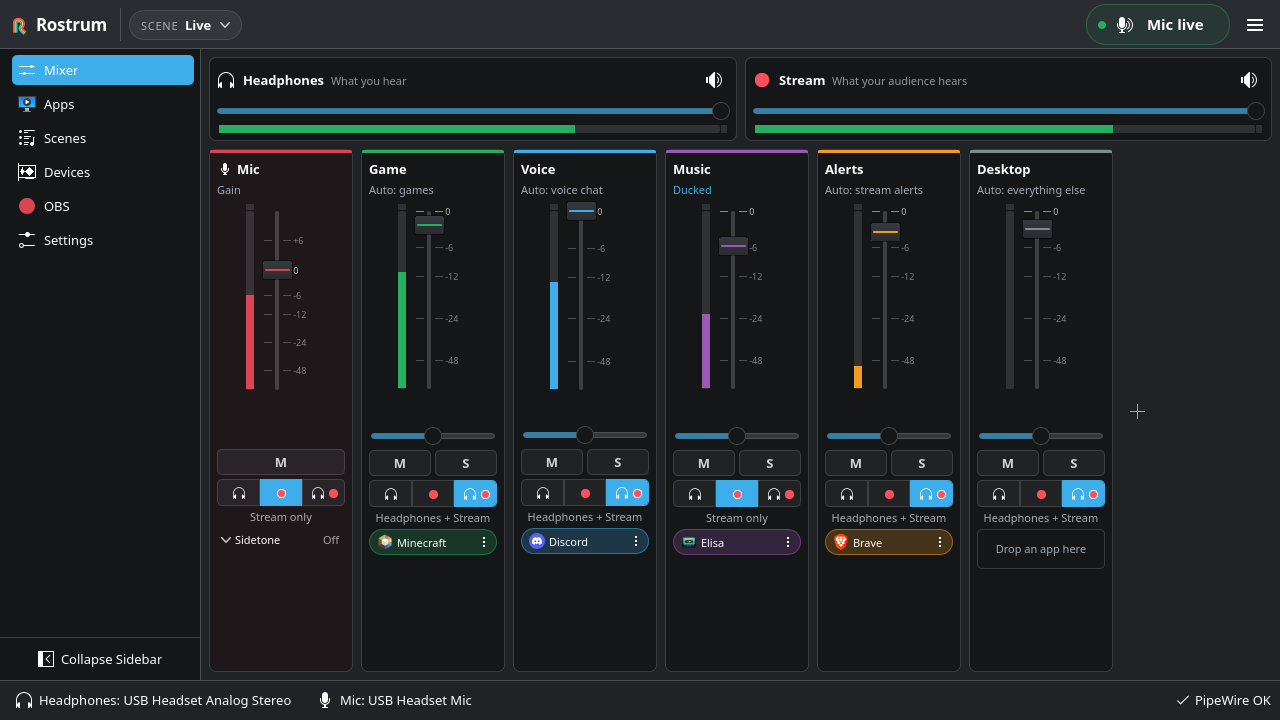

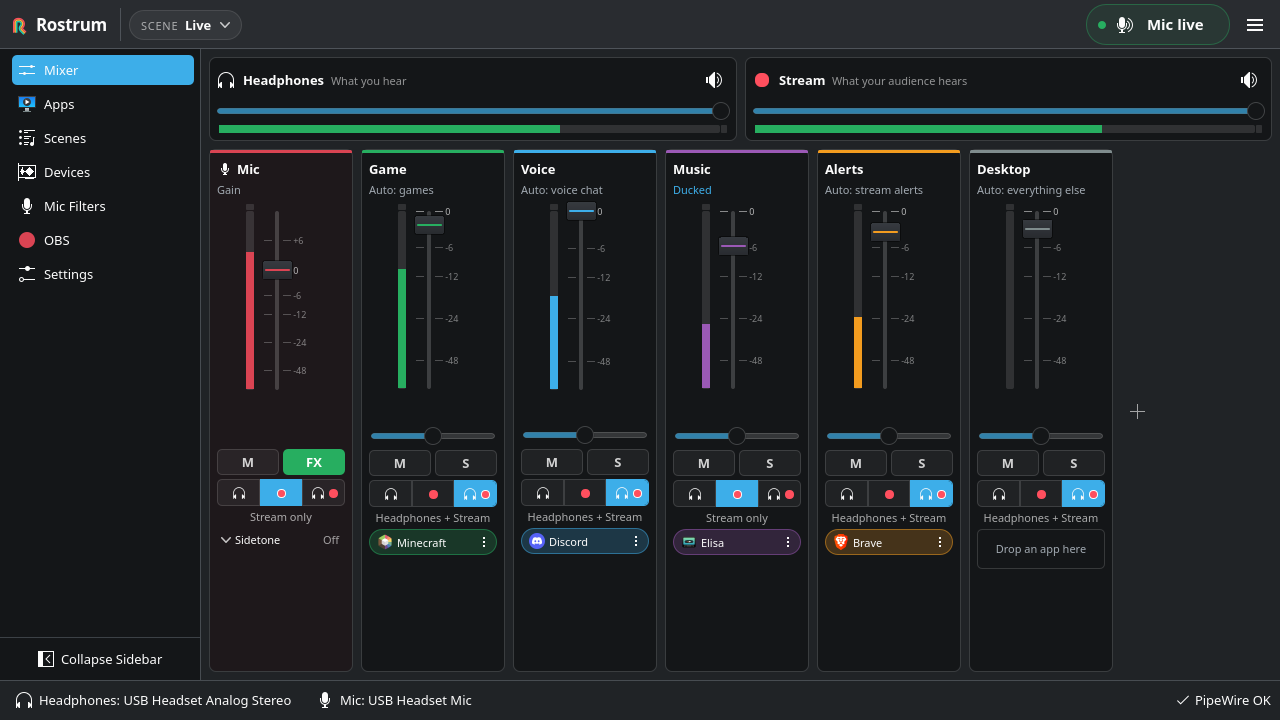

Six buses to start
Mic, Game, Voice, Music, Alerts and Desktop, each with a fader and mute. Every playback bus gets solo. Add more, up to twelve.
-
Headphones and Stream mixes
Send each bus to your headphones, the stream, or both. Headphones Only removes Stream Mix sends; Stream Only removes headphone sends. Independent OBS captures can bypass these exclusions.
-
Twitch VOD mix
Keep music out of the saved VOD while it stays in the live stream. Each playback bus has an Include in Twitch VOD choice; Music is excluded by default.
-
Separate OBS recording tracks
Assign buses to tracks 3–6, review the proposed changes and undo them separately from stream setup. Tracks 1 and 2 keep the live and VOD mixes.
-
OpenDeck controls
Toggle the mic, mute a bus, switch scenes or use panic mute from a deck. Optional mic cues play in headphones. Install the bundled plugin from Settings → Integrations.
-
Saved microphone and fallback
The mic has its own bus with optional sidetone. If a saved mic disappears, the stream mic stays silent until it returns. No other mic replaces it unless you explicitly enable fallback.
-
Local microphone filters
RNNoise reduces background noise, alongside a rumble filter, gate, EQ, compressor and limiter. Choose the stream and eligible recording apps, or only the stream, with per-app choices. Audio tools stay plain by default. Processing runs inside PipeWire.
-
Check your stream mic
Check Mic records five seconds of Rostrum Mic, with its gain and filters, and plays it back in your headphones only. It reports the mic level before OBS; it does not verify audience audio.
-

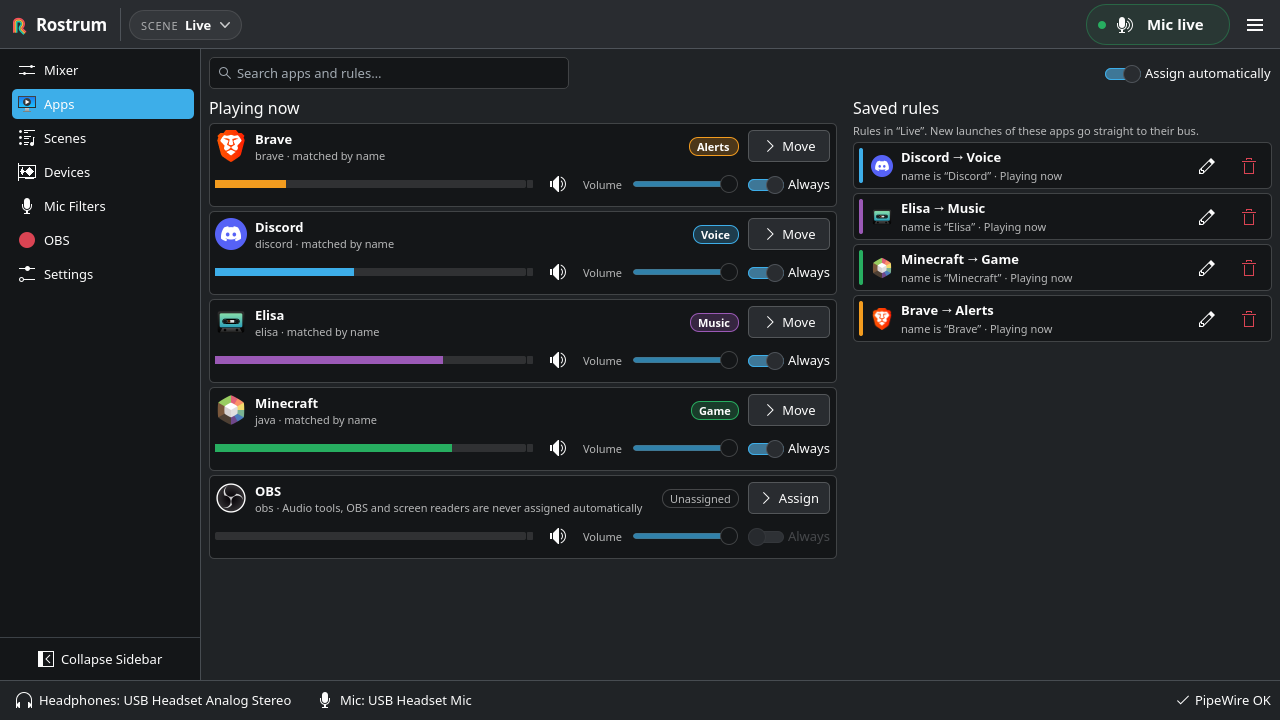

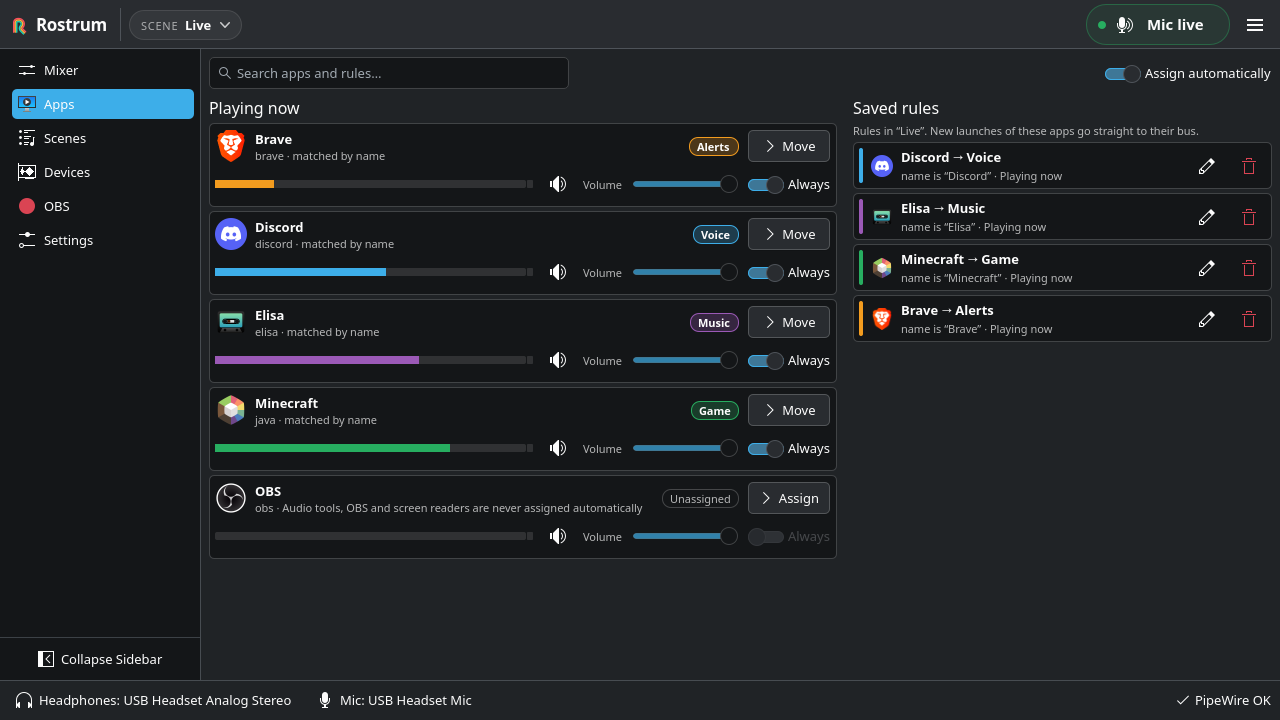

Apps find their bus
Discord goes to Voice, Spotify to Music, Steam and Proton games to Game, Streamer.bot to Alerts. Every placement shows why it was made.
-
Apps remember their bus
Save an app’s bus with “Always” and it lands there again, including before Rostrum starts at your next login. If Easy Effects pulls an app away as it starts, Rostrum moves it back.
-
Per-app volume and mute
Turn one app down or mute it without touching the rest of its bus. Every app shows its own icon, in the mixer too.
-
Balance and mono headphones
Pan any playback bus left or right, and fold your headphones to mono if you listen with one ear.
-
Scenes
Recall every level, mute and destination at once. Changes save to the live scene by themselves. Start from presets like Gaming, Just Chatting or Podcast.
-
OBS in one click
OBS captures Rostrum Stream Mix on track 1, Rostrum Mic on tracks 1 and 2, and Rostrum VOD Mix on track 2. Review the setup preview, including duplicate-capture mutes, and undo applied changes. Additional app or headphone captures can bypass exclusions.
-
Check stream readiness
Inspect effective controls, devices, channel links and OBS capture observations. Results distinguish Verified, Needs attention, Intentionally excluded/idle and Not verified. No settings are changed and no sound is played or recorded. It cannot guarantee recording or audience audio.
-
Knows when you are live
LIVE and REC badges follow OBS. A warning appears if you go live with your mic muted or nothing reaching the stream. OBS scenes can switch Rostrum scenes.
-
Global hotkeys
Mute the mic or the stream and switch scenes from anywhere. Bind push to talk, push to mute and a panic mute for mic and stream at once.
-
Command line and D-Bus
Drive Rostrum from Stream Deck buttons, KDE Connect or scripts with the
rostrumcommand or the session bus. There is no network listener. -
Auto-ducking and fades
Optionally let your voice turn Music down while you speak, and fade between scenes instead of switching at once.
-
Compact view
A small mixer with your mic, scene, masters and a slim fader per bus that can stay on top of a game or OBS.
-
Undo and backups
Undo and redo level and bus edits. Deleted scenes wait 30 days in Recently Deleted, and one file backs up all your settings and scenes.
-
Lives in the tray
Mute, switch scenes or restart Rostrum from the tray. Choose whether closing or minimizing the window hides it there.
A closer look
Install
Download the x86_64 AppImage
Rostrum 0.2.0 AppImage · SHA256SUMS · Release notes. Save the AppImage and checksum file in the same folder, then run:
sha256sum -c SHA256SUMS
chmod +x Rostrum-0.2.0-x86_64.AppImage
./Rostrum-0.2.0-x86_64.AppImage
# If FUSE is unavailable:
./Rostrum-0.2.0-x86_64.AppImage --appimage-extract-and-run

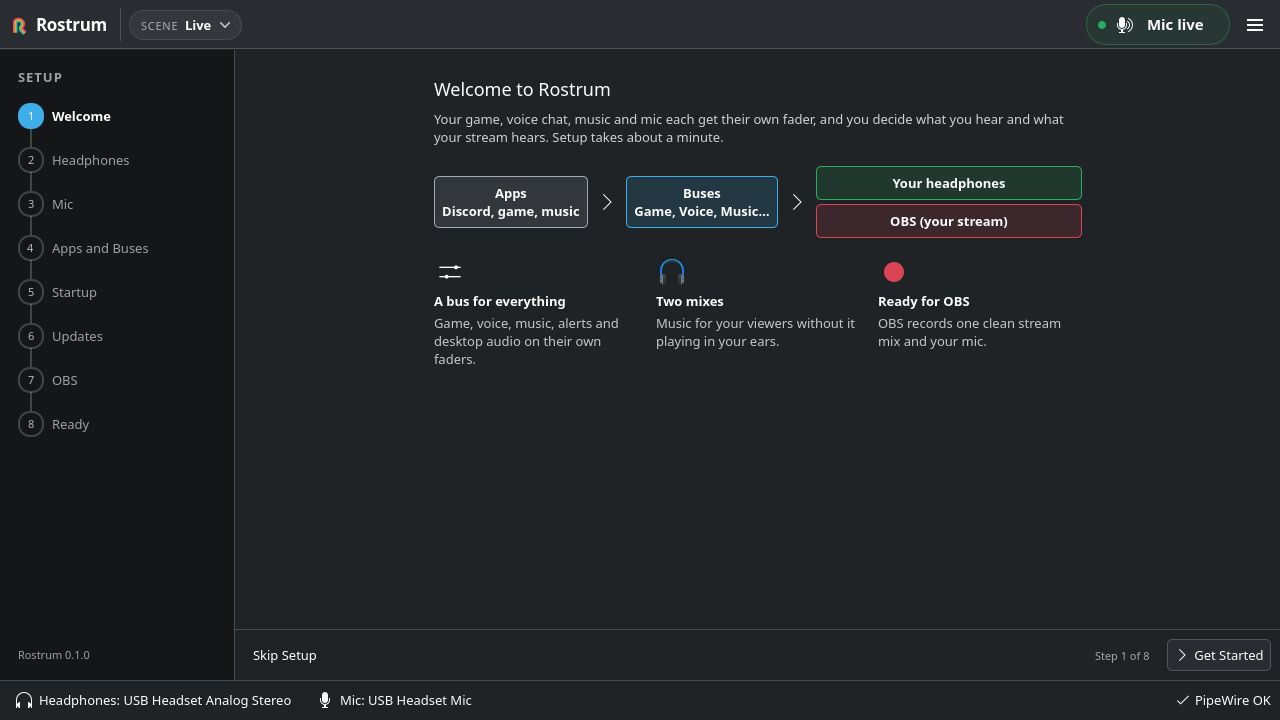

Fully quit an existing Rostrum through its tray/menu Quit first; closing the window can leave it running. Builds share settings and a second launch can activate the old copy. Follow first-time setup through Create Mix.
Tested environment and requirements
The AppImage was validated in clean Ubuntu 26.04 x86_64, glibc 2.43, PipeWire 1.6.2 and WirePlumber 0.5.13, without host Qt/KDE/QML or development packages. It requires glibc 2.43 or newer; that binary floor does not establish support for every newer distribution. Older glibc and other architectures are unsupported by this artifact. A working audio session, desktop D-Bus, X11 or Wayland, graphics/font libraries and FUSE for mounted launch are required. See the host runtime packages.

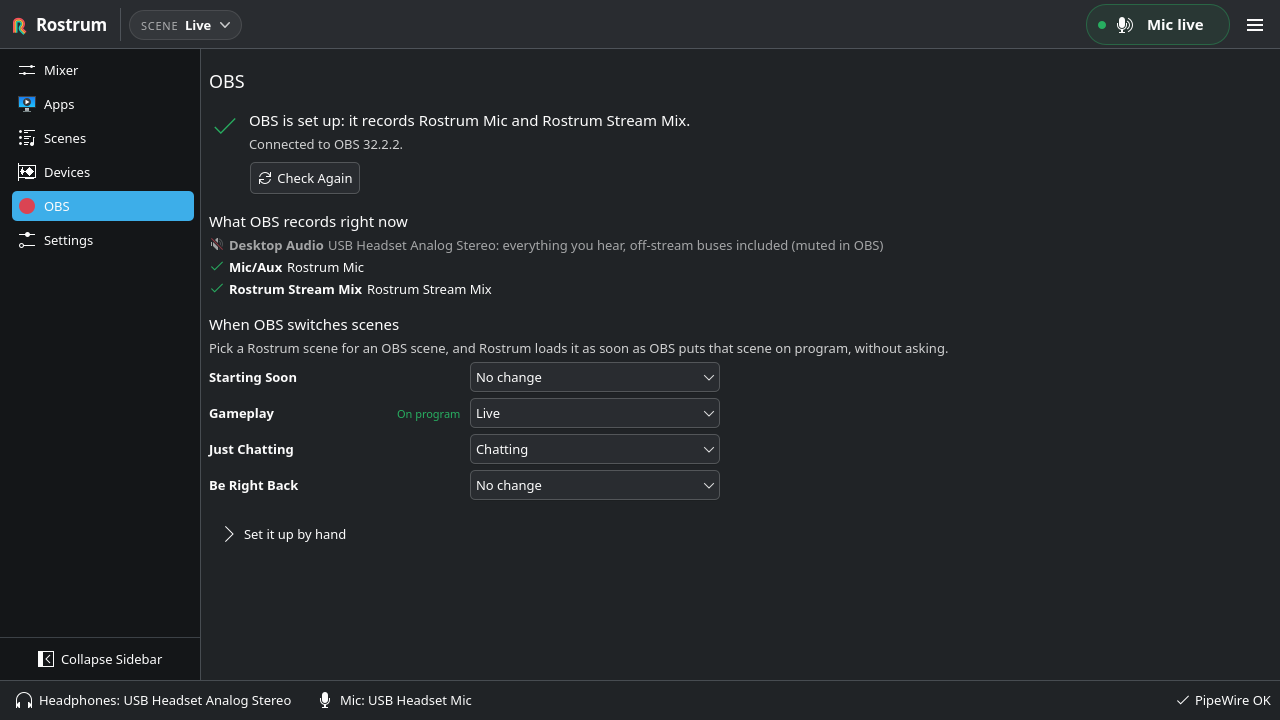

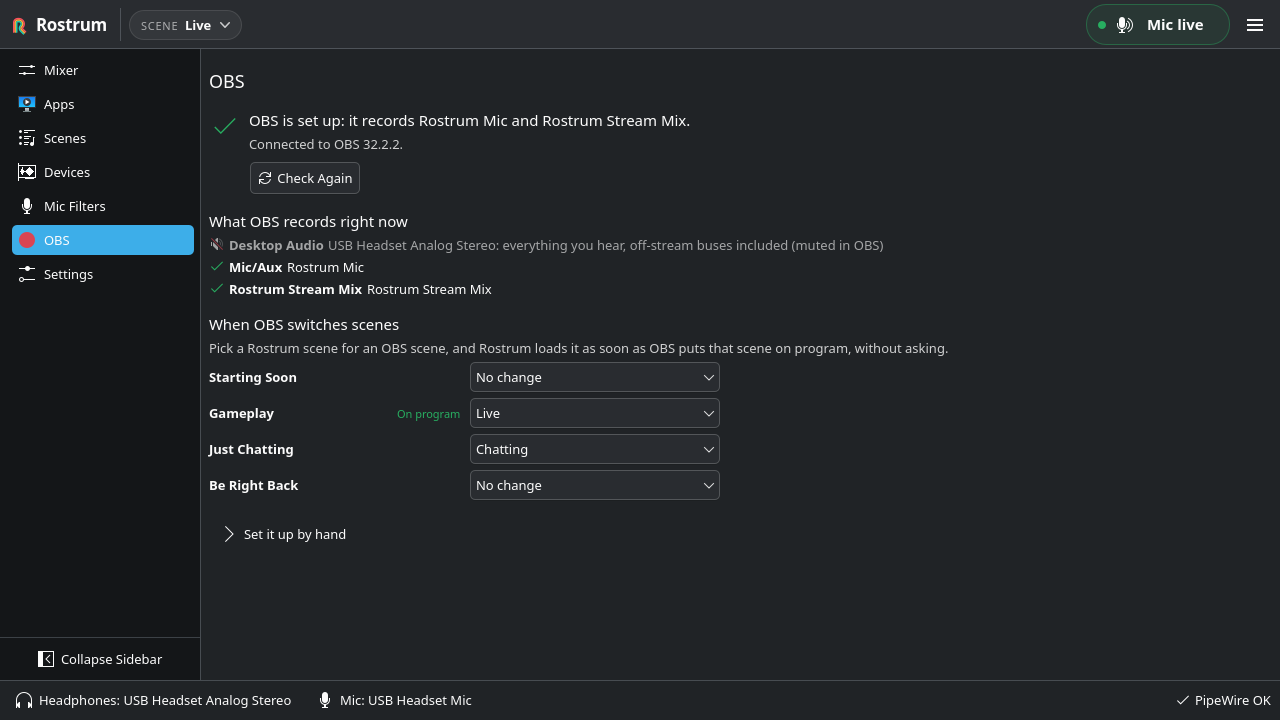

Connect OBS
Open Rostrum’s OBS page and choose Set Up OBS, review the preview and apply the changes.
Set Up OBS adds a named Audio Output Capture, “Rostrum VOD Mix”, on track 2. It does not
use Desktop Audio 2. With OBS running, enable its local obs-websocket server if needed.
For manual setup, use Audio Output Capture (or the PipeWire capture plugin) for
Rostrum Stream Mix (rostrum.stream.monitor with PulseAudio capture)
on track 1, Rostrum VOD Mix (rostrum.vod.monitor) on track 2,
and Mic/Aux or one Audio Input Capture for Rostrum Mic
(rostrum.mic) on tracks 1 and 2.
Use one capture per output. Disable or mute duplicate desktop, headphone/default-monitor, raw-mic and unassigned app captures: they can double audio or bypass Headphones Only exclusions. Keep the intended captures assigned through Recording tracks. A single Rostrum bus is not the Stream Mix. Run Check stream readiness, review OBS track assignments and make a short recording; readiness cannot verify audience sound. Readiness stays Needs attention until track 2 is selected and Rostrum VOD Mix is captured. Desktop Audio stays off track 2; it would put Music back into the saved VOD.
Recording tracks
Select Advanced output mode and Standard recording in OBS first. Recording tracks on Rostrum's OBS page has its own preview, backup and Undo, separate from Set Up OBS. Track 1 is the Stream Mix, track 2 is the VOD Mix, and tracks 3–6 capture the chosen buses. Occupied tracks default to Keep OBS assignments; empty tracks suggest 3 Mic, 4 Game, 5 Voice and 6 Music. Review the changes before applying with streaming and recording stopped.
Playback captures use rostrum.<bus>.monitor, including Headphones-only
buses without changing their stream destination. The mic recording track uses
rostrum.mic with filters off and rostrum.filtered with filters
on. After changing filters, review and apply again; reconnect checks assignments
without overwriting OBS edits. Mic mute silences the mic capture. A bus mute silences
that bus capture. Panic mute and master stream mute silence the Stream Mix and VOD Mix,
without silencing isolated playback bus captures. Matching tracks does not prove
that the recording sounds right.
Enable Launch at login in Settings → General → Startup. You can also choose whether Rostrum starts hidden in the tray.
OpenDeck
Install and open OpenDeck once, then use Rostrum’s Settings → Integrations → OpenDeck → Install to install the bundled plugin. Restart OpenDeck and drag an action onto a key: Toggle mic, Panic mute, Switch scene, or Toggle bus mute. Python 3 is required. OpenDeck owns the deck; Rostrum does not open it. For manual copy instructions, see the OpenDeck setup guide.
OpenDeck mic cues provide optional headphone feedback, with per-key sound volume.
Include in Twitch VOD
Track 1 is the live mix. Track 2 is the saved Twitch VOD. Music is off the VOD mix by default. Game, Voice, Alerts, and Desktop are on. The mic has no checkbox; Rostrum Mic is on tracks 1 and 2.
A Headphones-only bus is in neither mix. Switching it back to Stream or Both keeps the checkbox as it was.
| Source | Track 1 (Stream) | Track 2 (Twitch VOD) |
|---|---|---|
| Rostrum Mic | ✓ | ✓ |
| Rostrum Stream Mix | ✓ | |
| Rostrum VOD Mix | ✓ | |
| Desktop Audio | Off | Off |
Check these settings in OBS:
- Settings → Stream: Service is Twitch.
- Settings → Output → Streaming: Twitch VOD Track is on and uses track 2. In Advanced output mode, Audio Track (the stream's own) must be another track, normally 1. In Simple output mode the setting appears only with Enable Custom Encoder Settings on. It shows only when the service is Twitch, and Enhanced Broadcasting ignores it.
- Advanced Audio Properties: Rostrum Mic on tracks 1 and 2, Rostrum Stream Mix on track 1, Rostrum VOD Mix on track 2, and Desktop Audio off both tracks.
Desktop Audio on track 2 puts Music back into the VOD. Leave Desktop Audio disabled or muted. A local OBS recording uses its own track boxes. Track 2 in a recording is the VOD mix only if the recording is set to track 2.
To check: run a short Twitch stream with music playing. The live replay has the music; the saved VOD does not.
Build from source
Source-build instructions cover Ubuntu, Fedora and Arch. Source minimums are PipeWire 1.0+, WirePlumber 0.5+, Qt 6.5+ and KDE Frameworks 6.8+; mic filters need PipeWire 1.4+ audio-convert support. These are not the AppImage’s validated compatibility matrix. Source-build CI passes on Fedora and Arch do not validate this AppImage on those systems.
Privacy and network access
Rostrum has no telemetry or accounts and does not upload your audio. Mic filters and the mic check run locally without saving recordings. Optional update checks and AppImage downloads contact the release servers; optional crash reports go to Sentry. OBS communication stays local.
- Optional checks and downloads Update checks contact getrostrum.dev and GitHub without cookies or a user ID. AppImages can automatically download and install checksum-verified updates, or wait for you to choose Install. Checks and automatic installation have separate switches in Settings → Application → Updates.
- Crash reports are your call Official builds include optional crash reports to Sentry. By default Rostrum asks after a crash; you can inspect the report before sending, or choose Always or Never. No names, paths, device names or user IDs. Ordinary source builds omit crash reporting.
- OBS stays on your computer Rostrum reads OBS status and capture settings over localhost. Stream setup and recording-track changes apply only when you choose them. Background following can be disabled in Settings → Integrations → OBS.
- No network listener Remote control goes through the command line or the D-Bus session bus, never a port.
